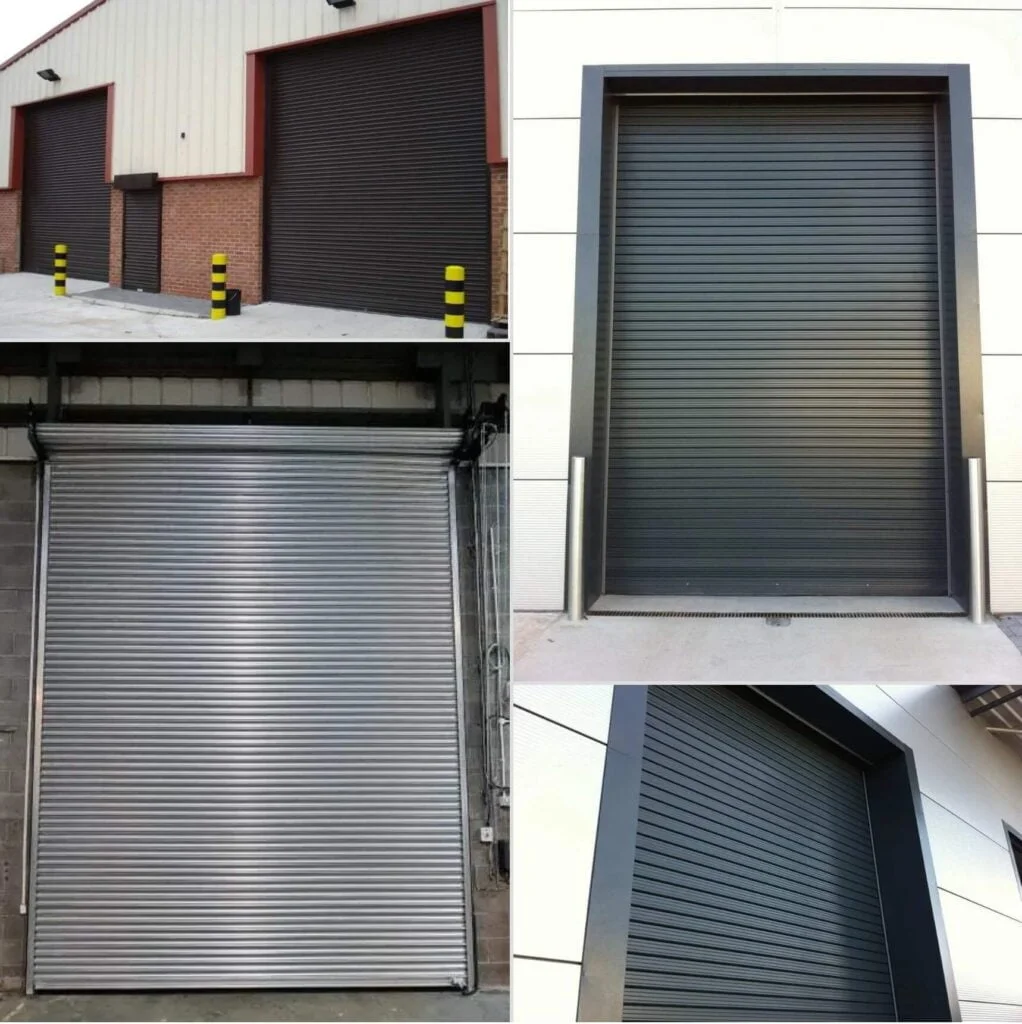

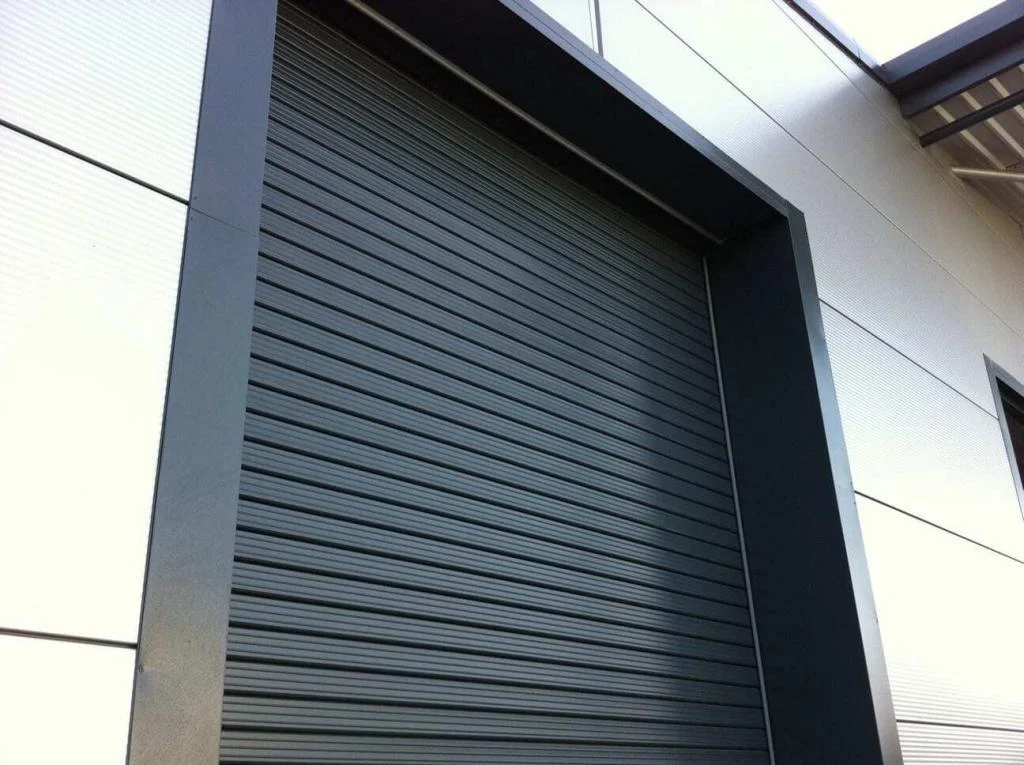

Industrial Roller Shutters

Available in a wide variety of specifications and finishes, our industrial roller shutter are designed to suit individual requirements and manufactured to EN 60335-2-95. We use high-quality materials and components in the construction of our roller shutters to ensure a long service life, this is a testament to our very first roller shutter which is still in good working order after over twenty five years of daily use !

SUITABLE FOR

All types of commercial or industrial properties including: Factories, Garages, Retail Properties, Hospitals, Transport Depots, Warehouses etc.

Sizes available:

• Chain Operation: Sizes up to 5.0mtrs Wide x 4.0mtrs High.

• Electric Operation: Sizes up to 8.0mtrs Wide x 6.0mtrs High.

Larger sizes may be possible depending on application.

Curtain:

Standard Steel:

• The curtain is built using traditional 75mm cold rolled formed steel galvanised laths, available in either solid galvanised or with a plastisol coating.
• The curtain is laterally secured using high grade nylon endcaps with optional wind locks for added protection.
• ‘T’ profile bottom rail fitted to the base of the roller shutter curtain with optional rubber seal.

Insulated Steel:

• 95mm Steel foam filled insulated curtains for improved thermal performance.
• The curtain is laterally secured using high grade nylon endcaps with optional wind locks for added protection.
• Aluminium extruded bottom rail fitted to the base of the roller shutter curtain with rubber seal.

Guides & Structure:

• The roller shutter structure is secured to either side of the opening using two full height steel angles with concealed fixings, the coil end plates are either bolted or welded to the support angles to create the main roller shutter structure.
• The coil end plates support the roller barrel and motor assembly.
• The guide channels are bolted to the main upright structures.
• The guides are manufactured using high grade cold rolled 3mm galvanised steel sections, available in either 65, 75mm or 100mm standard or windlock profiles.

Operation:

• Chain Operated: hand chain operated via the assistance of a counter balanced spring with machined steel reduction gears to ease operation.
• Security: Hand Chain Locking Box or Ground Locks.

• Electrically Operated: via high quality single or three phase industrial motors with either direct drive, reduction gear drive, or chain drive configuration, integral limit switches, manual override , safety brake and thermal cut-out.
• Controls: Push button control switch, starter control box or key switch.

Optional Equipment available for Electrically Operated Roller Shutters:

• Safety Photocell System
• Safety Edge System
• Safety Loop System
• Remote Control Interface
• Traffic Light System

Finishes:

• Galvanised / Painted Finish
• Polyester Powder Coated Finish
• Plastisol Coated Curtains

Our roller shutter doors are manufactured in accordance with EN 60335-2-95 Directives.

For more information or for a free estimate please feel free to contact us.
