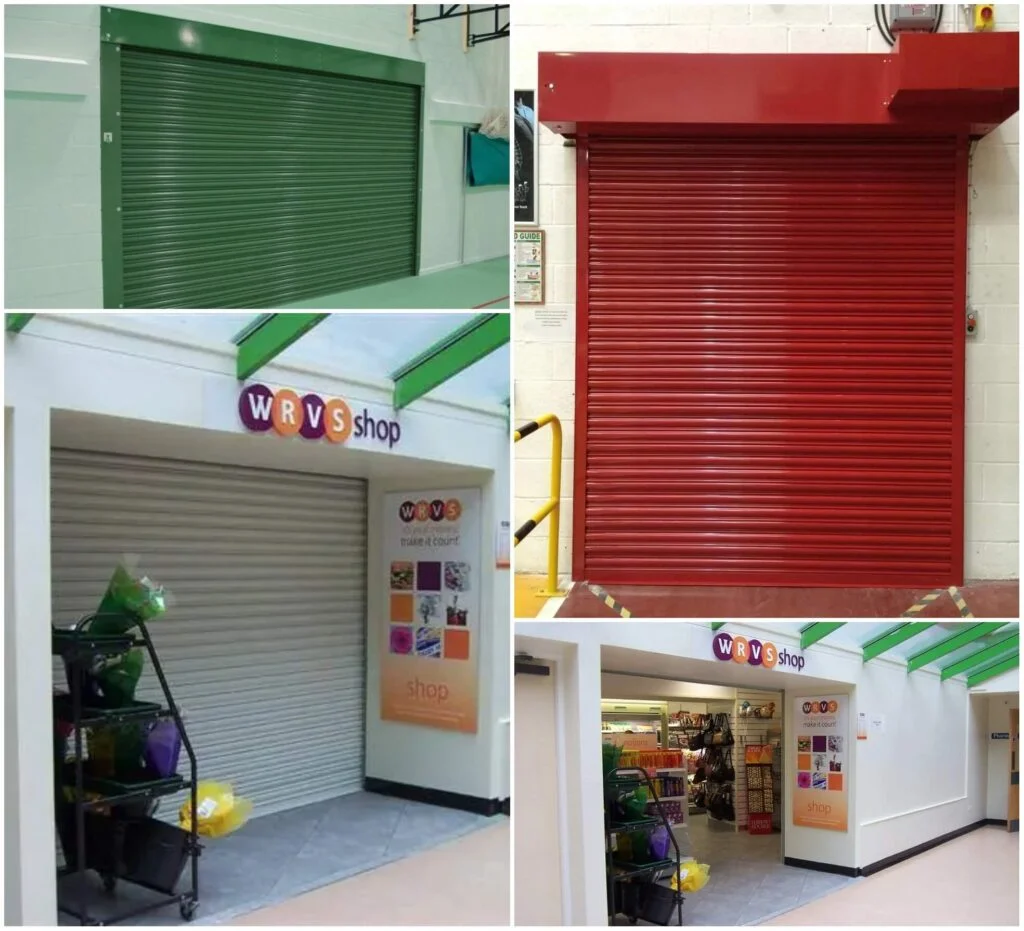

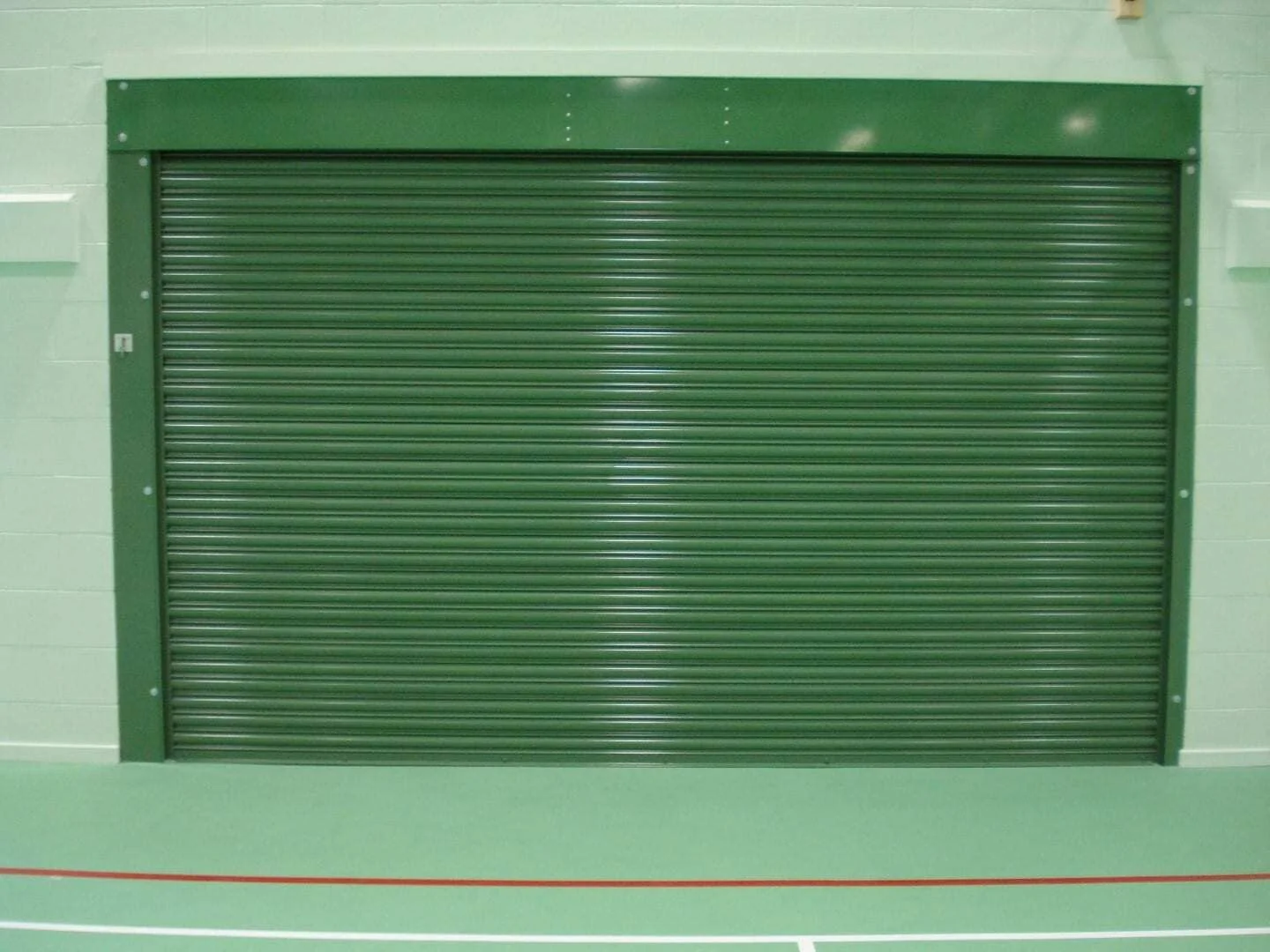

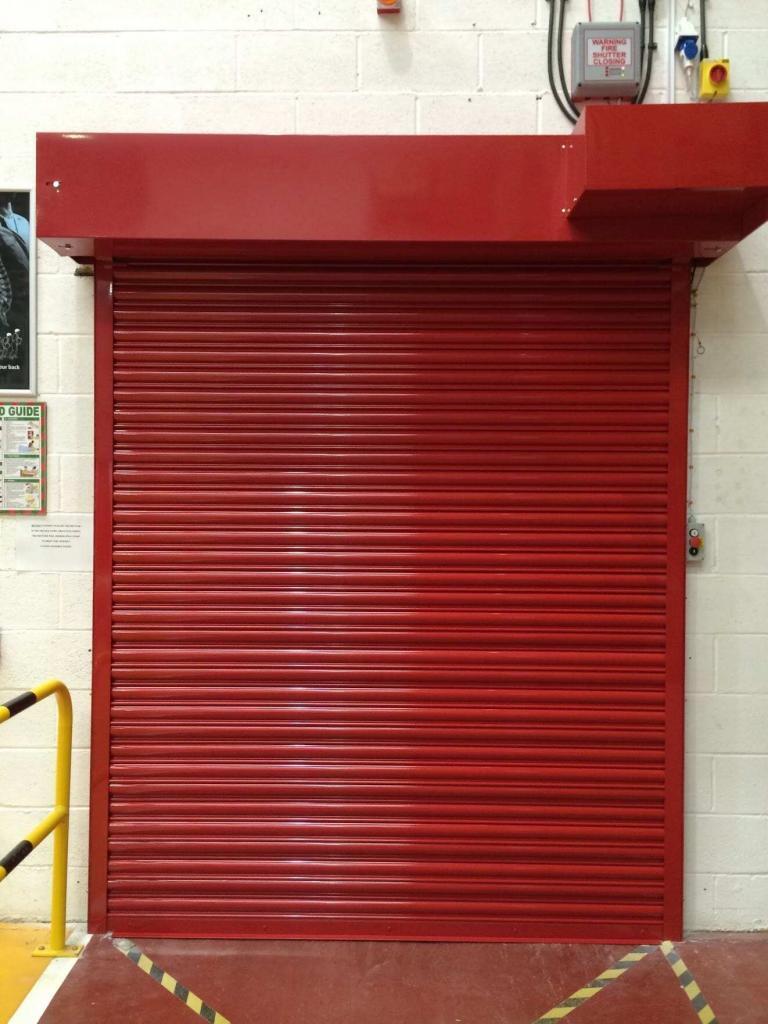

Fire Roller Shutters are manufactured using industrial components to comply with BS476 Part 22 and designed to stop the spread of fire for a limited amount of time.

SUITABLE FOR

All types of non-residential properties including: Schools, Shops, Factories, Garages, Retail Properties, Hospitals, Canteens and Catering Facilities, Warehouses etc.

Sizes available: Up to 6.0mtrs Wide x 5.0mtrs High

• Certified to offer up to 4 Hours Protection
• Tested to BS 476 Part 22:1987 at the Loss Prevention Laboratory
• Available in sizes up to 6.0 metres wide (depending on application)
• Electrically Operated (Single or 3-Phase)
• Galvanised or Polyester Powder Coated Finishes
• Optional Smoke Seals
• Optional Programmable Control Panel

Fire Roller Shutters can be configured to automatically close by one of the following methods:

• Fire Alarm Interface: when linked to a suitable fire alarm system, the roller shutter will descend at a controlled speed on activation of the fire alarm.

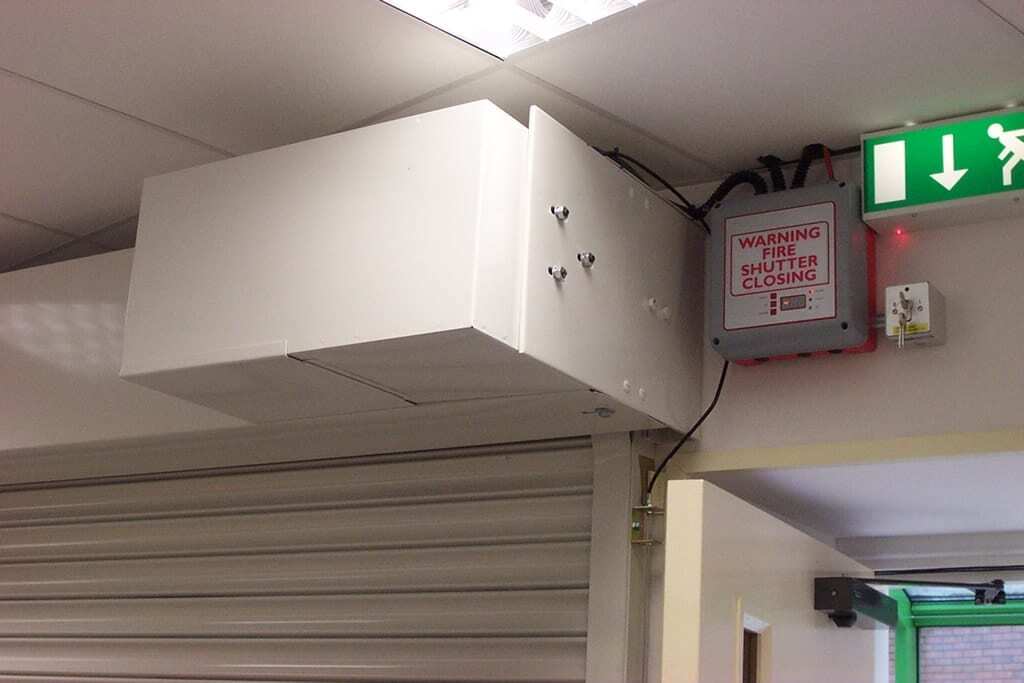

• Fire Control Panel, with optional Audio/Visual & Battery Back-Up System which can be programmed to work in a number of ways, when linked to a suitable fire alarm system, the roller shutter will descend at a controlled speed on activation of the fire alarm.

Curtain:

• The curtain is built using traditional 50mm or 75mm cold rolled formed steel galvanised laths.
• The curtain is laterally secured using steel endcaps.
• ‘T’ profile bottom rail fitted to the base of the roller shutter curtain.

Guides & Structure:

• The roller shutter structure is secured to either side of the opening using two full height steel angles with concealed fixings.
• The coil end plates are bolted to the support angles to create the main roller shutter structure.
• The roller assembly is supported between the coil end plates.
• The guide channels are bolted to the main upright structures.
• The guides are manufactured using high grade cold rolled 3mm steel sections, available in either 65mm, 75mm or 100mm standard or wind lock profiles.

Finishes:

• Galvanised / Painted Finish
• Polyester Powder Coated Finish
• Plastisol Coated Curtain

If you would like more information about our Fire Roller Shutters or for a free estimate please feel free to contact us.
